Precision machining for highly intricate automotive components with multi-axis toolpath control, enabling stable formation of deep cavities, angled features, and non-standard geometries in a single setup.
DEK Automotive produces highly complex automotive CNC parts requiring simultaneous multi-axis coordination and precise tool orientation control. We machine EV structural frames, lightweight housings, aerodynamic components, and integrated assemblies where conventional machining cannot maintain geometric stability across multiple surfaces.
Maximum Work Envelope
Positional Repeatability
High-Speed Spindle System
We operate multi-axis machining centers configured for synchronized tool movement across complex surfaces. High rigidity structures and dynamic compensation systems help maintain stable cutting performance during continuous angle changes, deep cavity machining, and irregular geometry transitions in automotive components.
Continuity Machining
Surface Transition Deviation
Simultaneous Toolpath Control
We manage machining scenarios where geometry cannot be completed through standard axis repositioning. This includes continuous contouring across compound angles, maintaining tool engagement in restricted access zones, and controlling surface transitions between intersecting functional features.

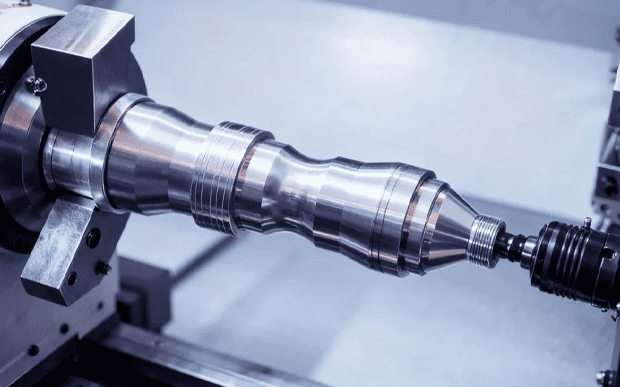

Thin-Wall Stability
Titanium Support
Surface Finish
We machine materials used in advanced automotive systems where weight reduction, stiffness balance, and thermal behavior must be controlled simultaneously. Each material requires adjusted cutting strategies to preserve geometry stability across complex, multi-directional toolpaths.
Tolerances listed here are minimums for an ideal case. Looser tolerances may be required depending on process, material choice, or part geometry. If you have no detailed requirements for product tolerance, we can follow the following general ISO2768 tolerance table.
| Standards | Metric Units |
|---|---|
| Maximum Part | 850 x 800 x 500 mm |
| Minimum Part | 4 x 4 x 4 mm |
| Minimum Feature Size | Φ 0.50 mm |
| Standard Tolerances | Metals: ISO 2768-f; Plastics: ISO 2768-m |
| Linear Dimension | +/- 0.02 mm |
| Hole Diameters (not reamed) | +/- 0.02 mm |
| Shaft Diameters | +/- 0.01 mm |
| Edge Condition | Note project requirement on drawings |
| Threads and Tapped Holes | 1.Standard size: Diameter: standard drill bit sizes; depth: 4×diameter 2.Maximum size: Diameter: Φ 1 mm; depth: 10×diameter 3.DEK can produce threads of any specification and size required by ourcustomers. |
| Text | 1. For plastic and soft materials: minimum width of 0.457 mm, depth of 0.3mm 2. For hard material: minimum width of 0.838 mm, depth of 0.3 mm 3. DEK can use CNC engraving or laser carving to create standard text based on customers’ requirements. |
| Lead Time | 8 business days for less than 50 parts |

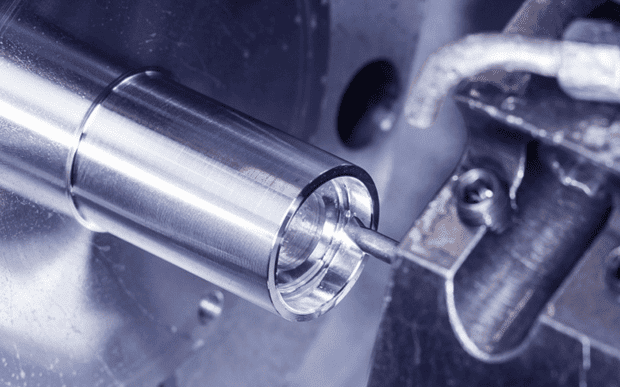

Complex parts require consistent positional alignment across multiple machining planes; we control cumulative errors through synchronized multi-axis calibration and referencing.

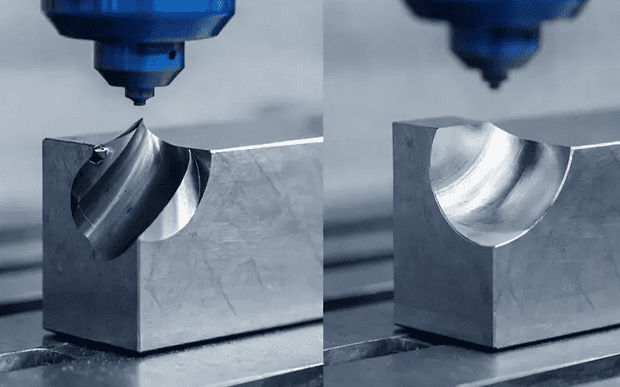

Restricted internal geometries limit tool reach; we apply extended tool strategies and adaptive paths to maintain stability in deep machining zones.

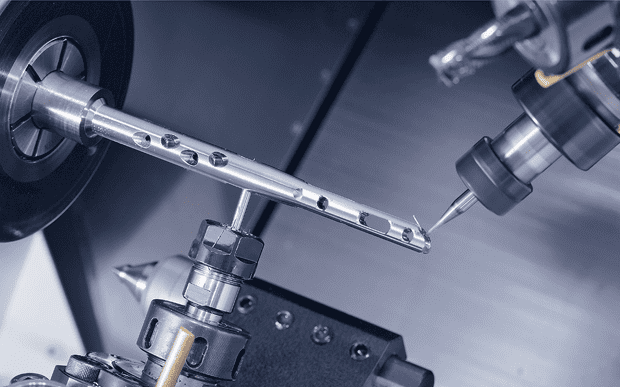

Intersecting holes, ribs, and pockets create machining conflicts; we sequence operations to preserve geometry integrity and avoid surface distortion.
Complex components often include thin sections prone to vibration; we reduce cutting force and support structures to maintain rigidity during machining.
Irregular surfaces require continuous tool orientation changes; we optimize simultaneous axis movement to maintain smooth transitions across complex automotive shapes.
Roundness tester, roughness tester, CMM

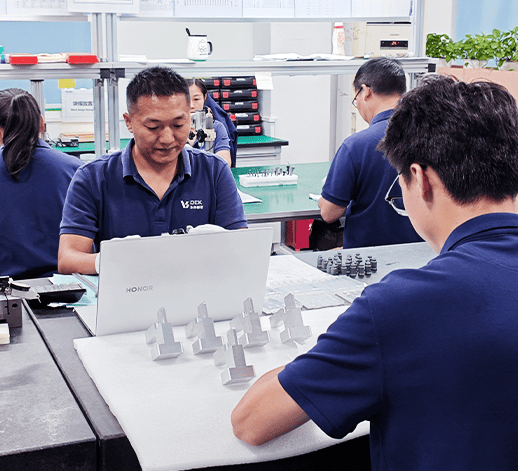

We verify multi-surface accuracy, internal feature alignment, and geometric consistency using advanced metrology for complex automotive components.

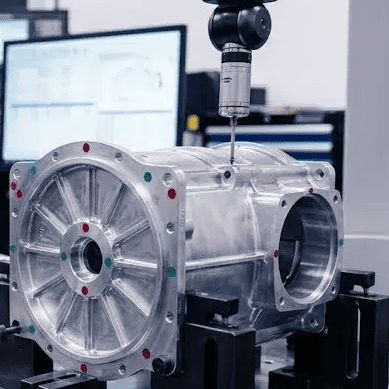

Full 3D measurement of multi-surface geometry accuracy.
First article validation for complex assembly compliance.
Checks positional accuracy across intersecting geometries.

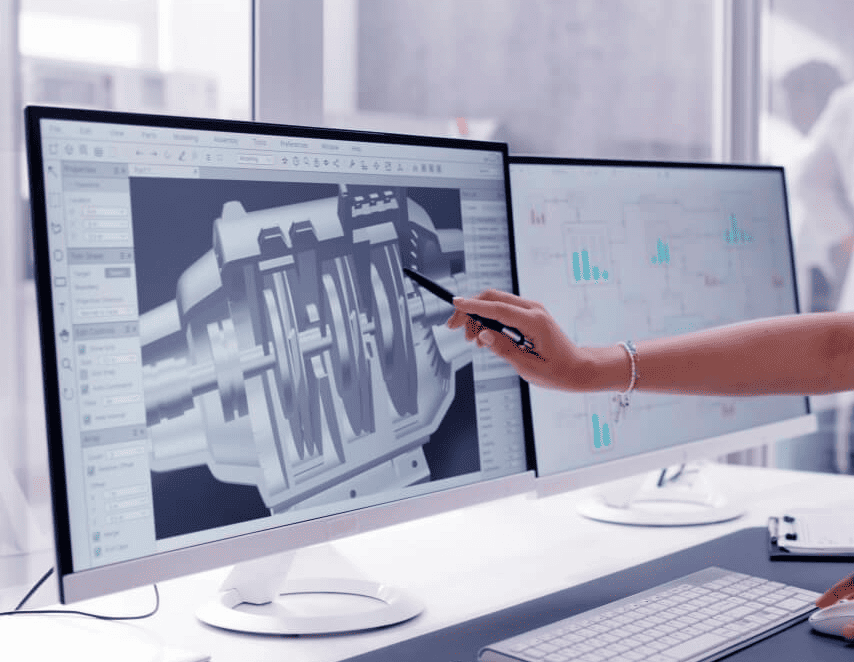

DEK Automotive supports complex automotive CNC part development through manufacturability analysis, multi-axis process planning, and geometry optimization. We assist from early design stages through production, ensuring stable machining of intersecting features, deep cavities, and multi-surface structural components.
The complex aluminum housing came out really clean. Even the internal channels were accurate, and everything assembled without adjustment.
Automotive Design Engineer

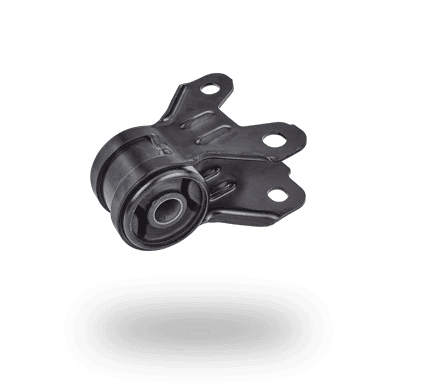

We had a pretty complicated bracket design with intersecting features. Parts arrived on time, and the machining quality was better than expected.
R&D Mechanical Engineer
Surface finish and dimensional consistency on the EV structure parts were excellent. Packaging was solid, and nothing got damaged during shipping.
Manufacturing Procurement Manager
We ensure dimensional stability across multi-surface automotive components after machining.

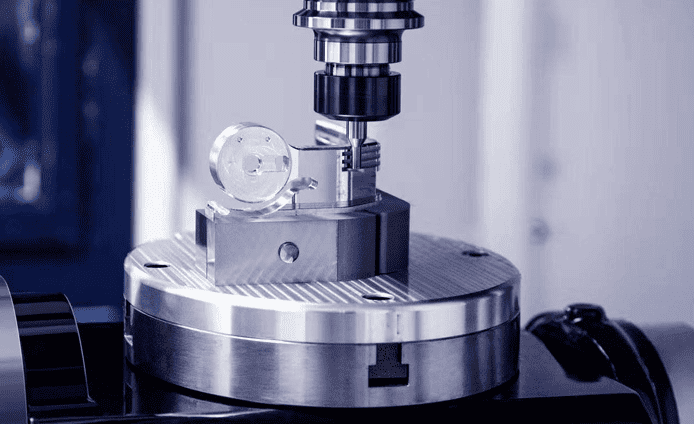

Precision machining for undercuts, compound angles, and intersecting geometries in one setup.
We minimize repositioning errors through multi-operation machining and controlled setups.

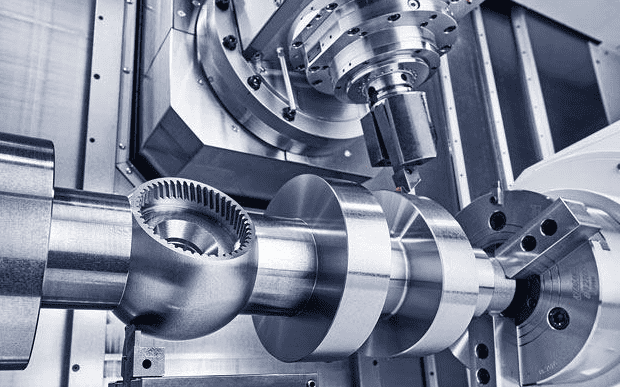

Maintaining precise alignment between critical bores, slots, sealing faces, mounting features.
We integrate advanced machining, specialized materials, and surface finishing to deliver mission-critical parts that meet every rigorous automotive standard.
