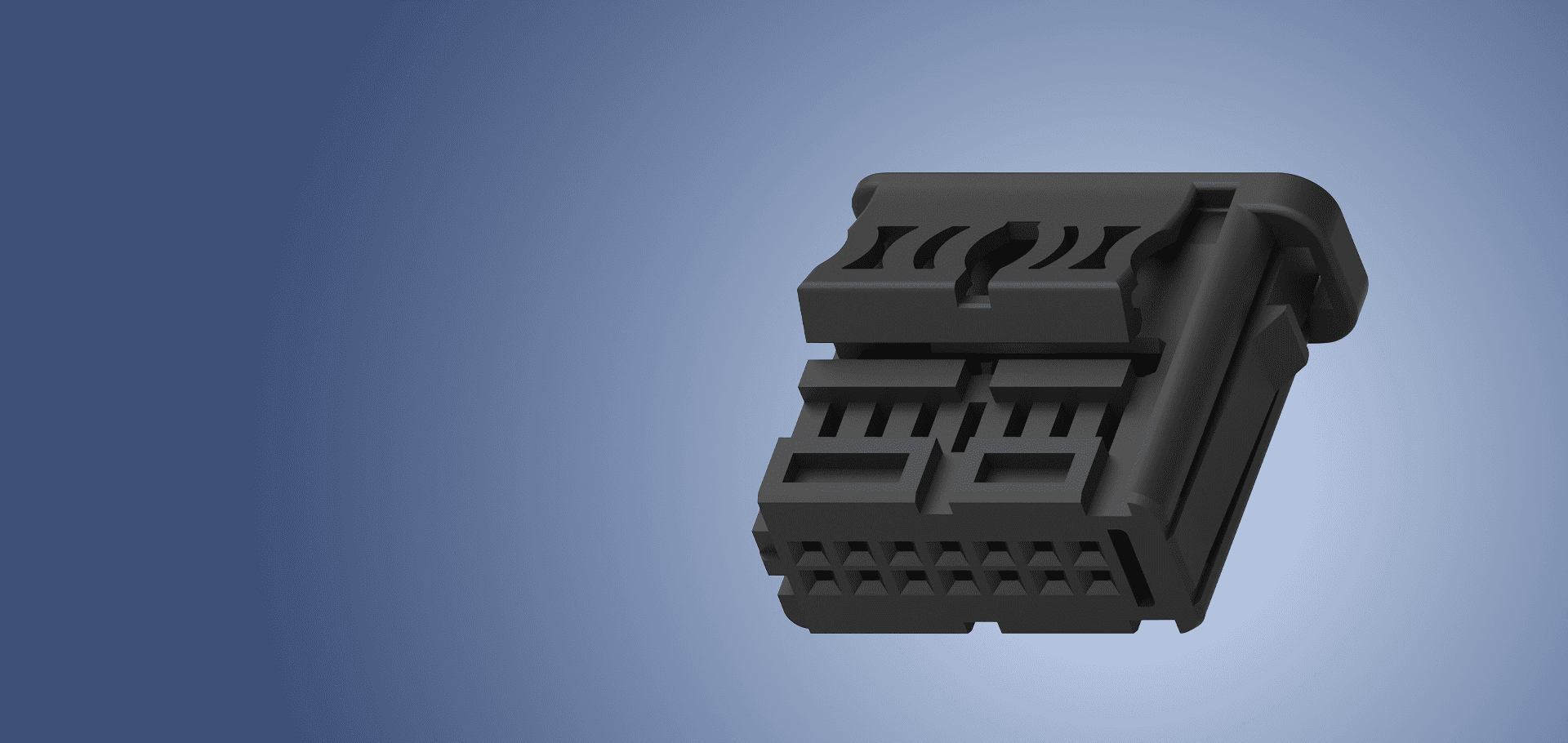

High-precision electrical connector housings built with high-grade alloy and tight tolerances for effective shielding in critical automotive wiring.
We manufacture precision-engineered connector housings utilizing advanced 5-axis CNC processes to achieve accurate terminal fitment and a reliable circuit. Every component undergoes rigorous inspection to meet IATF 16949 and ISO 9001 quality standards.
From rapid single-piece validation prototypes to scaled high-volume supply deployments, our production lines maintain strict batch consistency. We integrate comprehensive Design for Manufacturability (DFM) support alongside full PPAP documentation.
Detailed dimensional and machining parameters we prioritize when qualifying high-precision connector housings for automotive electrical project.
| Manufacturing Parameters | Technical Specifications |
|---|---|
| Max Machining Dimensions (3-Axis) | 500 × 400 × 300 mm |
| Max Machining Dimensions (5-Axis) | 400 × 350 × 250 mm |
| Positional Cavity Tolerance | ±0.02 mm True Position |
| Sealing Surface Roughness (Ra) | Up to Ra 0.8 – 1.6 µm |
| Primary Process Materials | Aluminum (6061-T6, ADC12), PA66-GF30, PBT |
| Minimum Partition Wall | 0.9 mm between adjacent cavities |
| Thread and Insert Accuracy | Metric sizes M2 to M10, ±0.02 mm |
Every cavity position verified by CMM to ±0.02 mm positional accuracy.
Sealing profiles machined to geometry that sustains IP67 and IP69K ratings.
Wall thickness and materials engineered to perform from -40°C to +150°C.
We integrate advanced machining, specialized materials, and surface finishing to deliver mission-critical parts that meet every rigorous automotive standard.
