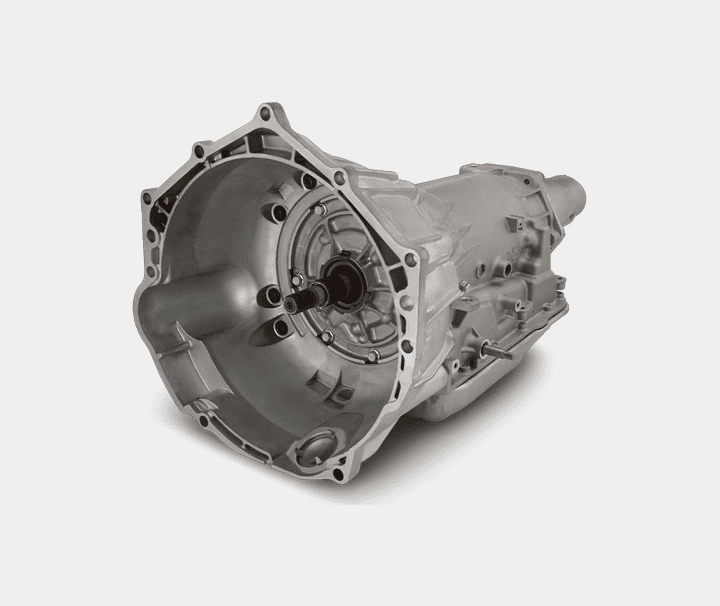

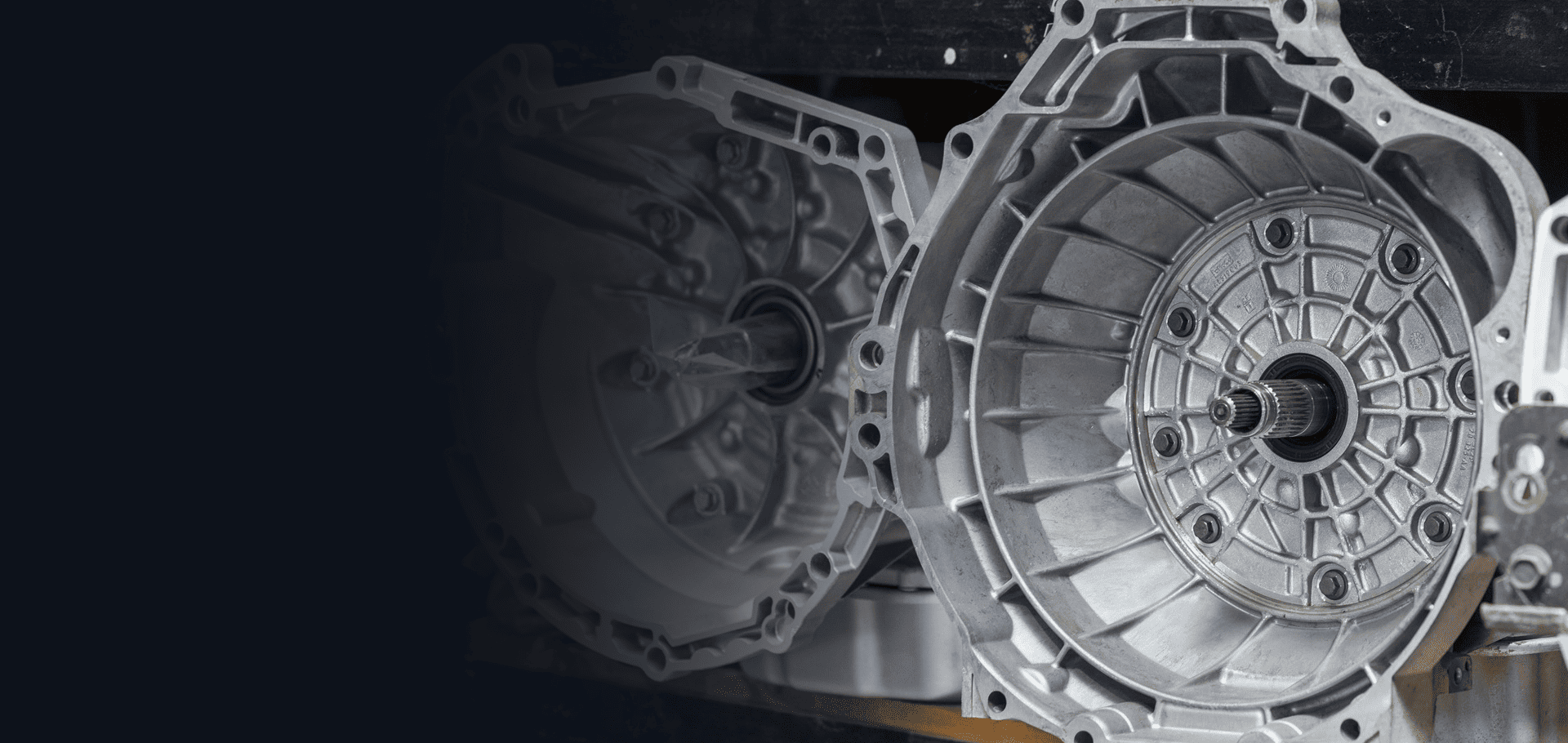

Our integrated CNC machining lines turn high-integrity aluminum castings into lightweight, low-noise transmission cases that survive extreme torque stresses.
We achieve exceptional NVH reduction targets by utilizing vacuum-assisted squeeze casting methods, eliminating internal structural porosity while meeting rigorous OEM dimensional engineering specifications on complex internal oil channels.
Streamline your inventory requirements with our scalable manufacturing output, accommodating monthly production spikes easily while providing comprehensive material traceability testing data and dedicated field support.
Our advanced production facility delivers precise, high-rigidity powertrain structures tailored to strict OEM engineering requirements.
| Manufacturing Parameter | Technical Specification |
|---|---|
| Casting Process | High-Pressure Die Casting (HPDC) / Vacuum-Assisted Squeeze Casting |
| Material Alloys | AlSi9Cu3(Fe), AlSi10Mg(Fe), A380 Aluminum |
| 5-Axis Machining Envelope | Up to 1200 mm × 1000 mm × 800 mm |
| Bore Geometric Tolerance | True position within 0.02 mm or less |
| Surface Roughness | Ra 0.8 µm on critical sealing faces |
| Leak Testing Threshold | Less than 5 sccm at 3.5 bar dry air |
| Production Capacity | Automated cells yielding up to 500,000 units annually |
Our five-axis machining centers guarantee micron-level bore alignments.
Automated manufacturing lines support high-volume automotive production runs.
Every housing completely adheres to the rigid IATF 16949 standards.
We integrate advanced machining, specialized materials, and surface finishing to deliver mission-critical parts that meet every rigorous automotive standard.
Fill out the form below and our team will get back to you promptly with a personalized quote tailored to your needs.
