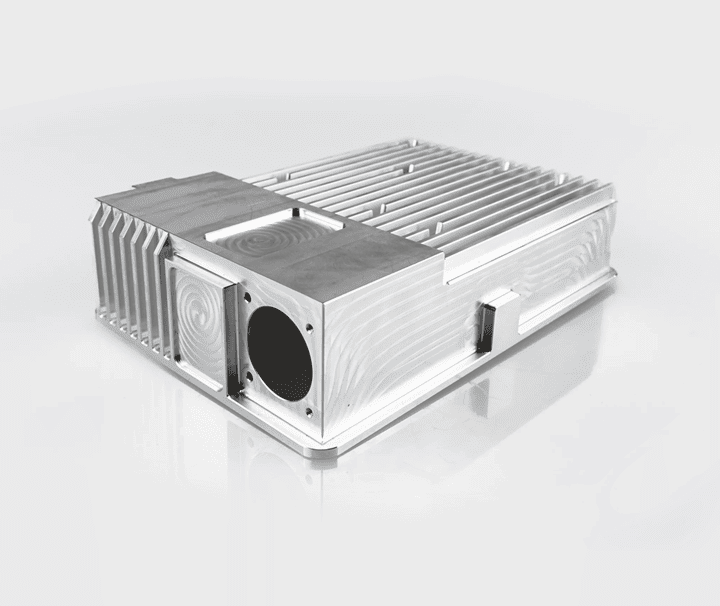

Highly accurate ECU housings made with quality material and tight tolerance, to provide effective thermal management and protection.
We deliver advanced, high-performance ECU enclosures utilizing specialized methods to satisfy strict dimensional requirements and environmental protection. Parts are made under an ISO 9001-certified quality system. PPAP-style documentation on request (to validate by DEK). Lid joints are machined for continuous shield contact, and PCB mounting features are machined to the drawing.
From small production runs to large-batch tier supply, our manufacturing processes maintain absolute component consistency. We provide proactive Design for Manufacturability (DFM) support on the features the drawing calls out.
Key technical dimensions and machining parameters that engineering teams analyze when sourcing high-reliability ECU enclosures for production automotive programs.
| Manufacturing Parameters | Technical Specifications |
|---|---|
| Max Machining Size | 500 × 400 × 350 mm |
| Dimensional Tolerance | Up to ±0.005 mm Precision Grade |
| Surface Finish Bounds (Ra) | From Ra 0.4 µm up to Ra 3.2 µm |
| Primary Process Materials | Aluminum (6061-T6, Billet), Cast ADC12, A380 |
| Minimum Wall Thickness | Down to 1.0 mm on ultra-thin pockets |
| Thread Interface Accuracy | Metric sizes M3 to M12, ±0.03 mm |
Connector ports and shield units held within ±0.05 mm positional tolerance.
PPAP-style documentation on request (to validate by DEK).
Consistent lead times maintained from prototype to mass production.
We integrate advanced machining, specialized materials, and surface finishing to deliver mission-critical parts that meet every rigorous automotive standard.
